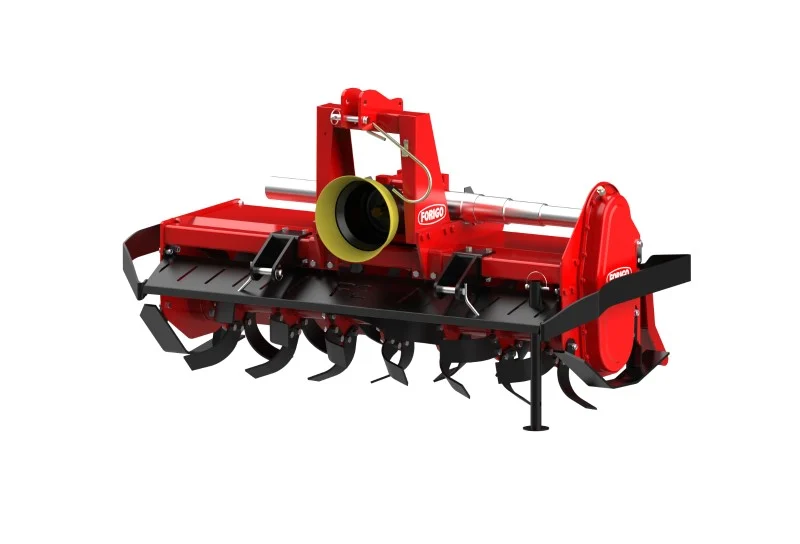

Rotary Tillers F2S
Basic machine
- Universal 3 point linkage Cat. 1 & 1s
- Linkage movable manually
- Single speed gearbox 540 rpm PTO
- Lateral transmission driven by chain in oil bath
- Automatic chain tensioner on spring
- Removable flanged rotor
- 4x speed "C" blades per flange
- Adjustable rear hood by chain
- Pair of adjustable lateral skids for working depth regulation
- Safety guards
- Cardan shaft with shear bolt torque limiter SB type (1”3/8 Z=6 tractor side yoke)
Variants width
| Model | Working width | Total width | Hoes | Weight | ||
|---|---|---|---|---|---|---|
| Skids & hood | ||||||
| cm | inch | cm | inch | n. | kg | |
| F2S - 120 | 118 | 46 | 133 | 52 | 24 | 235 |
| F2S - 140 | 138 | 54 | 153 | 60 | 28 | 250 |
| F2S - 160 | 158 | 62 | 173 | 68 | 32 | 285 |
| F2S - 180 | 178 | 70 | 193 | 76 | 36 | 290 |
